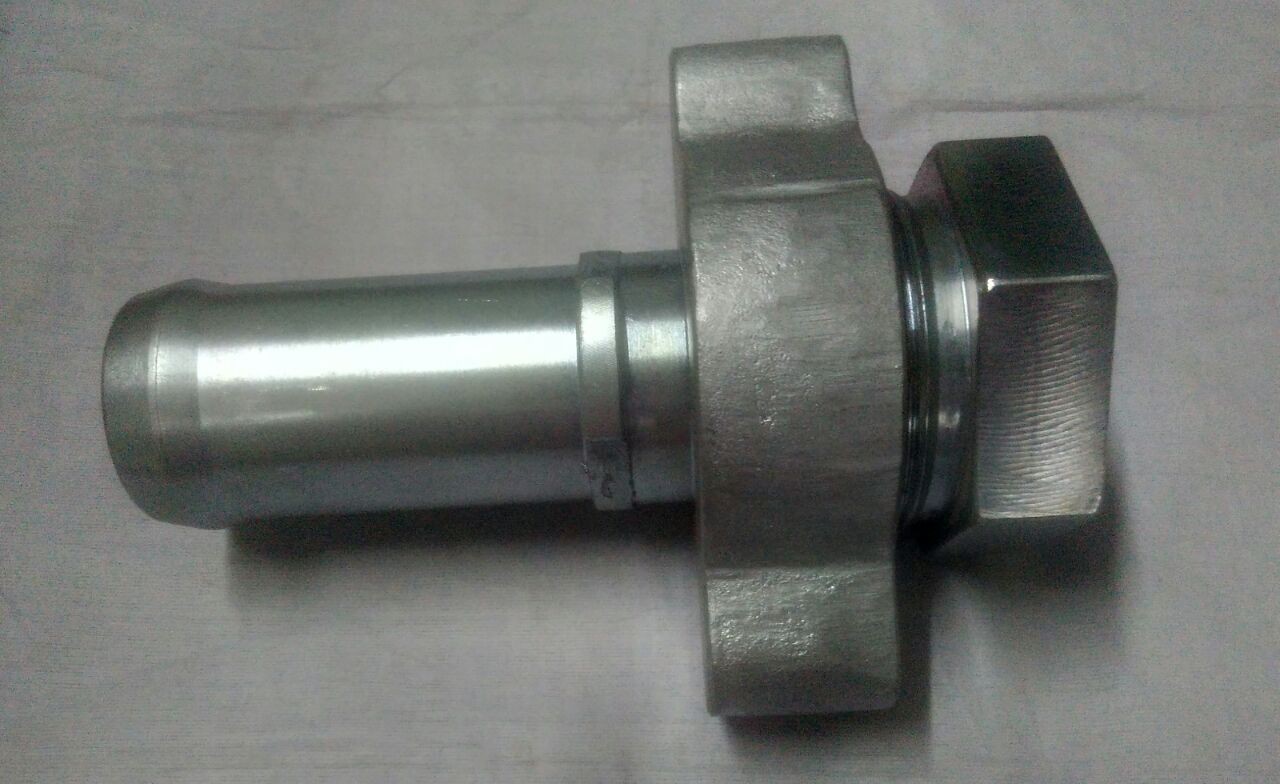

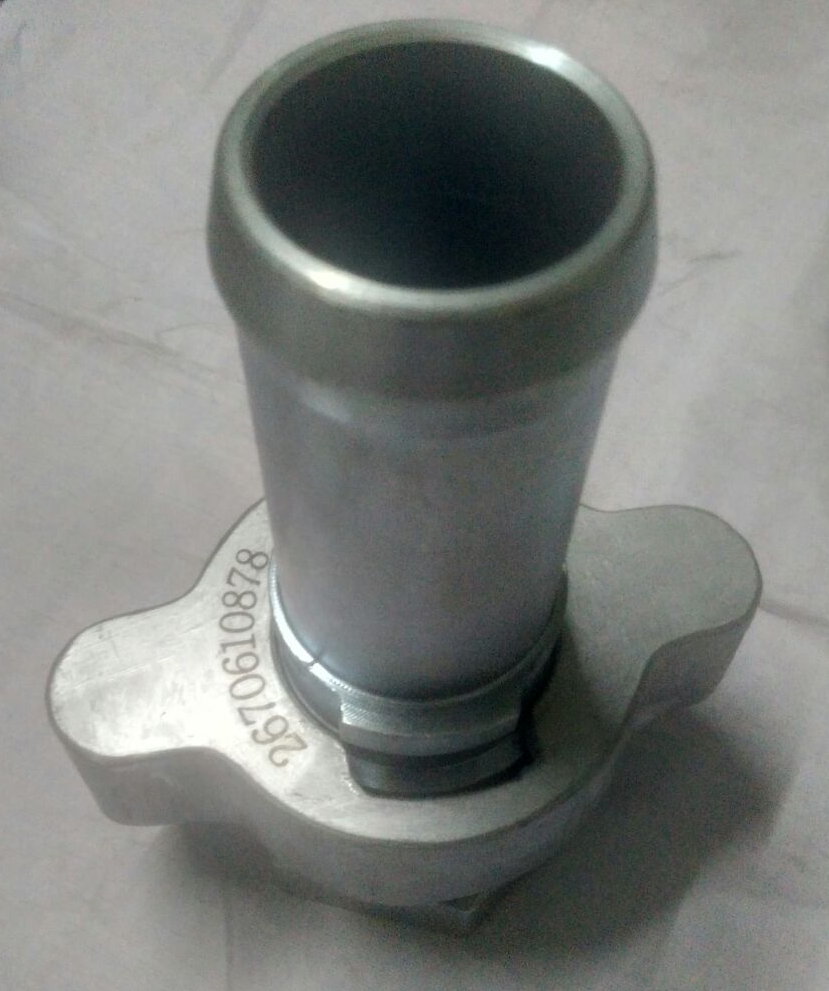

Quick Release Coupling

High pressure · custom

We manufacture safe and reliable Quick Release Couplings as per customer requirements. Our couplings offer high performance and optimum fluid flow, with robust materials, seals, and locking mechanisms for various pressure conditions. Used in mining, aeronautics, and automotive industries, they are resistant to high pressure, non-corrosive, and dimensionally accurate.

Family
Machine accessories
Specification
High pressure · custom

Nomenclature

  • Quick Release Coupling
  • Quick Connect Fitting
  • Quick Disconnect Coupling
  • Quick Release Assembly

Description and Features

Quick release couplings allow fast manual connection and disconnection of fluid or gas lines, eliminating the need for tools or wrenches and reducing downtime.

They feature self-sealing valves that prevent spillage, enhancing workplace safety and keeping systems clean.

Constructed from durable materials such as brass, stainless steel, or carbon steel, and using robust seals and locking mechanisms, they handle a wide range of pressures and fluids.

  • Snap-type or ball-lock for fast hand-operated use in lab, pneumatic, and instrumentation systems
  • Dry-break (flat-face) couplings for spill-free disconnection in hydraulic and chemical applications
  • Cam-lock, roller-lock, bayonet and snap-lock variants tailored to specific industries and pressures
  • Single-shut-off, double-shut-off, and straight-through designs to manage leakage and pressure drop

Types and Mechanisms

  • Ball-lock or snap-type using spring-loaded balls and sleeve for secure lock
  • Cam-lock employing manual cam arms for quick hose coupling
  • Dry-break flat-face for minimal fluid loss and contamination control
  • Bayonet and roller-lock types for dedicated engagement styles

Common Uses

  • Hydraulic systems in construction, agriculture, mining and industrial machinery
  • Pneumatic tools, air compressors, and automation equipment
  • Chemical, food, and beverage industries requiring clean connections
  • Laboratory and medical settings using instrumentation lines

Selection and Sizing

Match coupling to fluid type, pressure range, and connection compatibility (threaded, push-in, panel mount).

Choose shut-off style: single, double, or straight-through, based on fluid retention needs.

Refer to applicable standards: ISO 7241 for hydraulic, ISO 6150 for pneumatic, MIL-C-27487 / A-A-59326 for camlock.

  • Specify size, pressure rating, material, seal type, and shut-off style
  • Example: hydraulic flat-face ISO 7241-A, 3/8 in brass double shut-off
  • Example: pneumatic industrial interchange 1/4 in, push-to-connect with NBR seals

Scope of Supply

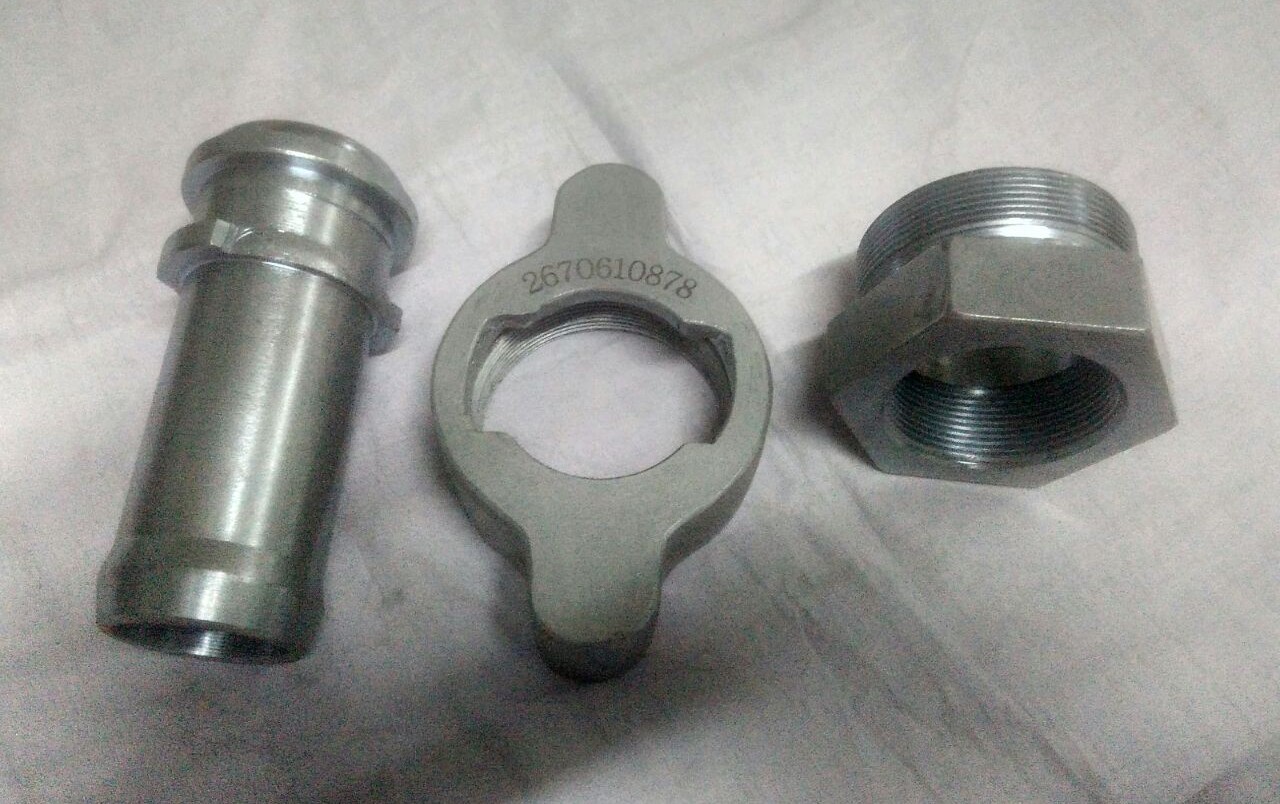

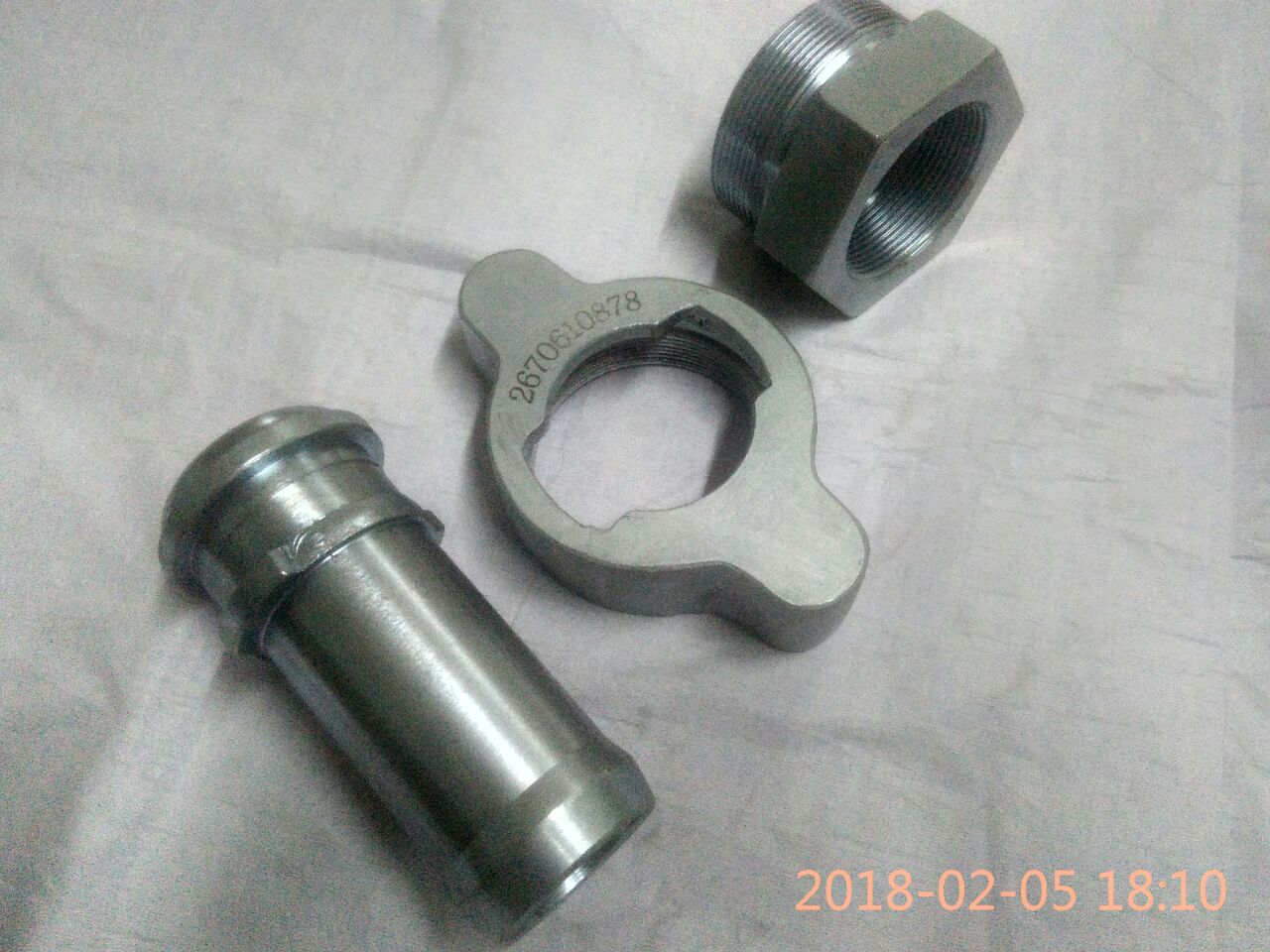

Supplied as plug (male) and socket (female) halves, or as matched sets

Available in materials: brass, stainless steel, aluminum, carbon steel

Care and Maintenance

  • Clean after use to remove contaminants and prevent seal damage
  • Engage dust caps when disconnected to protect from debris
  • Inspect seals and locking parts regularly; replace worn O-rings
  • Follow installation guidelines and pressure test to 150 percent of working pressure
